Cooler Master HAF II 500 Case Review: Airflow Beast
James Whitfield
3 min read
The Cooler Master HAF II 500 is a PC case engineered around one core principle: maximum airflow. Two enormous 220mm fans dominate the front panel, delivering exceptional cooling performance at the cost of a premium price tag and considerable physical width.

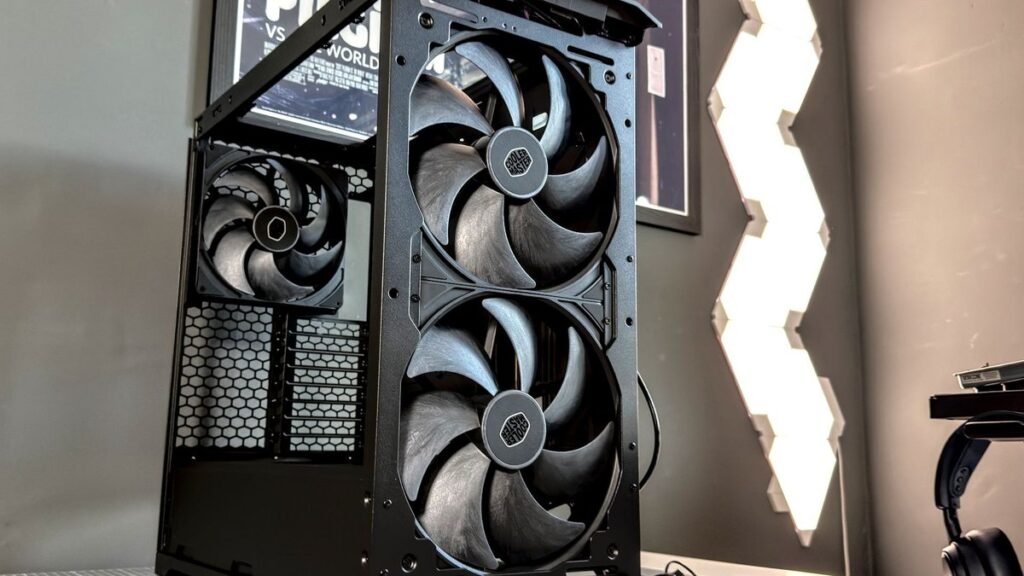

The standout feature is undoubtedly the pair of Mighty40 F220 fans mounted at the front. These represent the largest and thickest consumer fans Cooler Master could fit into the chassis, measuring 220mm in diameter and 40mm thick. The blades are constructed from liquid-crystal polymer, the same material found in Noctua's high-end NF-A14x25 G2 fans, chosen for its tensile strength and stability. Rated at 203.8 CFM while spinning at just 1,050 RPM, these fans deliver impressive airflow volumes at low speeds. A single 180mm Mighty40 V180 fan in the rear, rated to 161.5 CFM at 1,370 RPM, completes the cooling setup. In practice, the airflow is substantial enough to be felt throughout the entire chassis, indicating air flows through rather than escaping prematurely.
The case itself adopts a traditional layout but maximizes usable space with a notably wide design. It accommodates E-ATX motherboards up to 310mm and provides ample clearance between the GPU and tempered glass side panel for large air coolers. The top supports radiators up to 420mm through a sliding mounting system that simplifies installation. Building inside is straightforward thanks to the spacious interior, with generous room above, below, and beside the motherboard tray. The fans arrive pre-installed and connected to an integrated fan hub tucked neatly behind the motherboard tray, which includes six PWM headers and six ARGB headers for additional components.
Cable management receives thoughtful treatment through a dual-clamshell design with metal covers on both the front and rear. The front cover slides along the motherboard tray axis, allowing it to nestle snugly against the board edge to conceal messy cable runs. While this "set and forget" approach prioritizes aesthetics over meticulous organization, it effectively hides imperfect cable work. The case includes three easily accessible dust filters at the front, top, and power supply location. A dual-GPU support bracket with swiveling design caters to workstation builds, though its single axis of movement limits adjustability. The case uses non-captive thumbscrews with small washers that are easily misplaced, a minor annoyance during assembly.

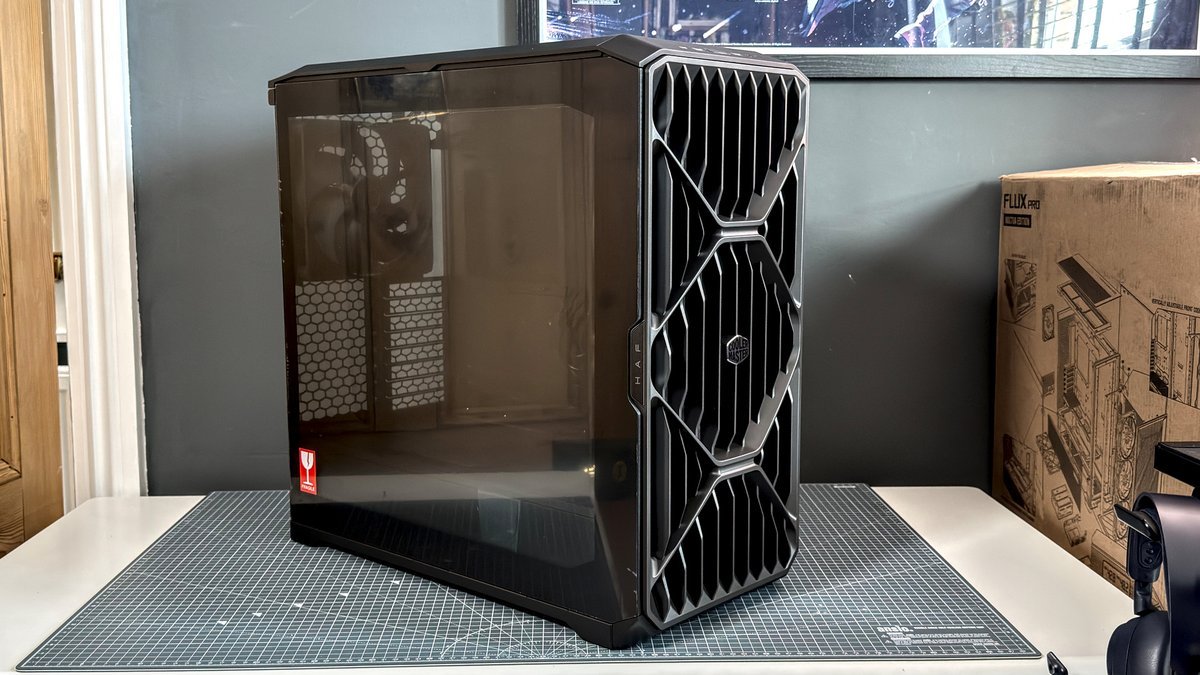

Aesthetically, the HAF II 500 takes a conservative approach. The front panel appears to be machined from a single metal piece but is actually polished plastic, featuring clean lines arranged around Cooler Master's hexagonal logo. The design is functional rather than flashy, though the HAF branding protruding from the tempered glass side panel adds subtle visual interest. The cable management system keeps builds looking tidy, particularly the cutout above the power supply shroud that conceals graphics card power connectors. The plastic construction feels somewhat rough around the edges in places, with occasional sharp edges present when panels are removed.
Thermal performance is excellent. During testing with an Intel Core i5-14600K and RTX 5070 Ti, the GPU remained at 70-71°C and the CPU at 35°C across both full-speed and 70% fan speed scenarios. At maximum RPM, the three fans produce 50 dB(A) from 50cm away, which is notably loud. Reducing fans to 70% speed drops noise to 45 dB(A) while maintaining nearly identical temperatures, making this the practical operating point. Airflow measurements with an anemometer showed 2.3 m/s with the front panel and dust filter installed, 2.8 m/s without the panel, and 2.6 m/s without the filter, confirming the front intake components have minimal impact on the substantial airflow volume.
Pricing presents the primary drawback. At $200 in the US and £250 in the UK, the HAF II 500 commands a premium for a traditionally-designed case. While the three included fans and integrated fan hub justify some of the cost, alternatives exist. The Havn BF 360 offers similarly large 180mm fans for $180/£170, and the Phanteks Eclipse G400A provides four large fans for roughly half the price. However, compared to premium options like the Antec Flux Pro Noctua Edition, the Cooler Master represents better value.
The HAF II 500 excels for builders prioritizing cooling performance and ease of assembly, particularly those planning high-end systems prone to thermal stress. The massive fans eliminate the need for expensive aftermarket cooling solutions, potentially offsetting the case's premium price through savings elsewhere. However, for most users, a more affordable chassis will deliver adequate thermal performance. The case's width also demands consideration for desk space, as it occupies significantly more room than conventional designs.
